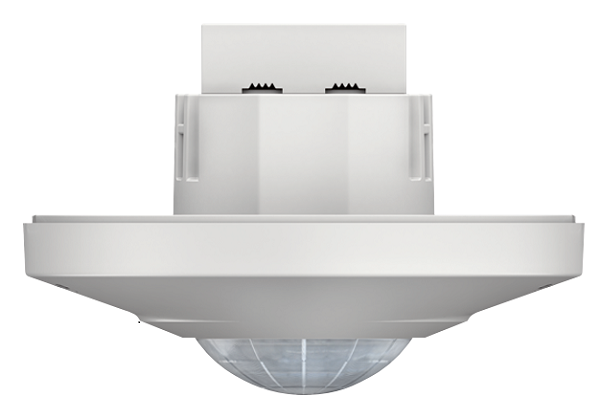

Cảm biến chuyển động + âm thanh LUXA 103-100 UA WH

SKU: LUXA 103-100 UA WH XUẤT XỨ: Đức
3,500,000₫

Function description

  • Motion detector (PIR)
  • Automatic lighting control based on presence and brightness
  • 1 channel, with acoustic function
  • Activation by the PIR sensor and deactivation by the microphone (microphone can also be deactivated)
  • Flexible installation options, ceiling installation using clamping brackets as well as flush-mounted or surface mounting using the optional surface frame
  • Mixed light measurement suitable for the control of fluorescent, incandescent and halogen lamps
  • Zero-cross switching
  • Detection area can be limited using three enclosed segments
  • Instant start-up possible via factory preset
  • No unintentional adjustment due to covered up controls
  • Adjustable brightness switching value and switch-off delay
  • Sensitivity can be reduced to limit detection area
  • Pulse function
  • Test function
Operating voltage 230 VAC
 Frequency 50 – 60 Hz
 Stand-by consumption ~0.5 W
 Light measurement Mixed light measurement
 Number of channels 360°
 Installation height 5s-30 min
 Incandescent/halogen lamp load 2000 W
 Fluorescent lamp load (conventional) parallel-corrected 900 VA 100 µF
 LED lamp < 2 W 35 W
 LED lamp 2-8 W 400 W
 LED lamp > 8 W 400 W
 Lamps Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
 Detection range 113 m² (ø 12 m | 360°)
 Remote controlled -
 Ambient temperature  -20°C ... 45°C
 Protection class II
 Type of protection IP 40 (when fitted)
