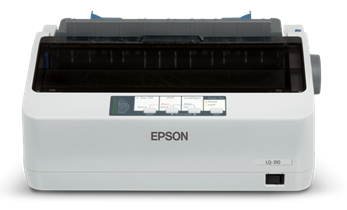

MODEL NUMBER | LQ-310 |
Printing Technology | |
Print Method | Impact dot matrix |
Number of Pins in Head | 24 pins |
Print Direction | Bi-direction with logic seeking |
Control Code | ESC/P2 and IBM PPDS emulation |
Print Speed | |
High Speed Draft10/12 cpi | 347 / 416 cps |
Draft10/12/15 cpi | 260 / 312 / 390 cps |
Draft Condensed17/20 cpi | 222 / 260 cps |
LQ10/12/15 cpi | 86 / 103 / 129 cps |
LQ Condensed17/20 cpi | 147 / 172 cps |
Print Characteristics | |
Character Sets | Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15 |
Bitmap Fonts | Epson Draft: 10, 12, 15 cpi; Epson Roman & San Serif: 10, 12, 15 cpi, Proportional; Epson Courier: 10, 12, 15 cpi; Epson Prestige: 10, 12 cpi; Epson Script, OCR-B, Orator & Orator-S: 10cpi; Epson Script C: Proporational |
Barcode Fonts | EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet |
Printable Columns | |
Pitch10/12/15/17/20 cpi | 80 / 96 / 120 / 137 / 160 cpl |
Paper Handling | |
Paper Path | |
Tractor | Rear in, Top out |
Manual Insertion | Rear in, Top out |
Paper Size | LengthWidthThickness |
Cut Sheet (Single Sheet) | 100 - 364mm (3.9 - 14.3")100 - 257mm (3.9 - 10.1")0.065 - 0.14mm (0.0025 - 0.0055") |
Cut Sheet (Multi Part) | 100 - 364mm (3.9 - 14.3")100 - 257mm (3.9 - 10.1")0.12 - 0.32mm (0.0047 - 0.0126") |
Envelope (No.6) | 92mm (3.6")165mm (6.5")0.16 - 0.52mm (0.0063 - 0.0205") |
Envelope (No.10) | 105mm (4.1")241mm (9.5")0.16 - 0.52mm (0.0063 - 0.0205") |
Continuous Paper (Single Sheet an Multi part) | 101.6 - 558.8mm (4.0 - 22.0")101.6 - 254.0mm (4.0 - 10.0")0.065 - 0.32mm (0.0025 - 0.0126") |
Roll Paper | NA216mm (8.5")0.07 - 0.09mm (0.0028 - 0.0035") |
Paper Feeding | |
Standard | Friction, Push Tractor |
Optional | Roll Paper Holder |
Copies | Original + 3 copies |
Line Spacing | 4.23mm (1/6") or programmable in increments of 0.118mm (1/216") |
Input Data Buffer | 128KB |
Interface | |
Standard | Bi-directional parallel interface (IEEE-1284 nibble mode supported) USB 2.0 Full-Speed Serial |
Ribbon Cartridge | |
Standard | Fabric Ribbon Cartridge (Black) |
Ribbon Life | Approx. 2.5 million characters (Draft 10cpi, 48 dots/character) |
Acoustic Noise | Approx. 53dB(A) (ISO 7779 pattern) |
Reliability | |
Mean Print Volume Between Failure (MVBF) | Approx. 20 million lines (Except print head) |
Mean Time Between Failure (MTBF) | Approx. 10,000 POH (25% Duty) |
Print Head Life | Approx. 400 million strokes/wire |
Control Panel | 4 switches and 5 LEDs |
Environmental Conditions (Operating) | |
Temperature | 5 ~ 35°C |
Humidty | 10 ~ 80% RH |
Electrical Specification | |
Rated Voltage | AC 120V / AC 220 - 240V |
Rated Frequency | 50Hz - 60Hz |
Power Consumption | |
Operating | Approx. 22W (ISO/IEC 10561 Letter pattern),(ENERGY STAR compliant) |
Sleep Mode | Approx. 1.0W (120V) / 1.3W (230V) |
Auto Off Mode | Approx. 0.5W |
Power Off | 0W |
Printer Driver / Utility | |
Operating System | Microsoft® Windows® 2000 / XP / 7, Microsoft® Windows Vista® |
Utility | |
Epson Status Monitor 3 | Microsoft® Windows® 2000 / XP / 7, Microsoft® Windows Vista® |
Epson Printer Setting | Microsoft® Windows® 2000 / XP / 7, Microsoft® Windows Vista® |
Dimensions and Weight |
